Outdoor Optical Cable
Figure 8 Cable(GYXTC8S)
- Description of the product

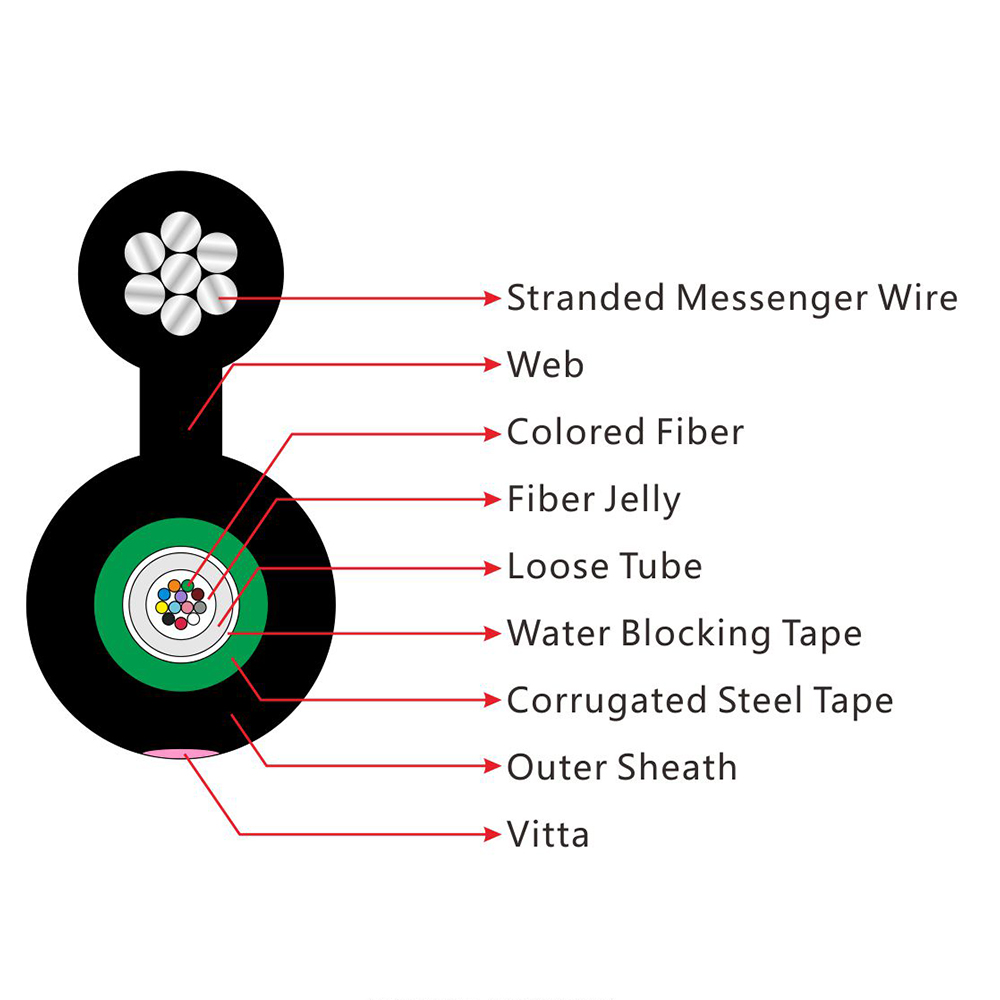

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· PSP enhancing moisture-proof
· Small diameter, light weight and friendly installation
· Long delivery length and low price.GYXTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
G.652G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
@850nm
≤3.0 dB/km
≤3.0 dB/km
@1300nm
≤1.0 dB/km
≤1.0 dB/km
@1310nm
≤0.36 dB/km
≤0.40 dB/km
@1550nm
≤0.22 dB/km
≤0.23dB/km
Bandwidth (Class A)
@850nm
≥500 MHz·km
≥200 MHz·km
@1300nm
≥1000 MHz·km
≥600 MHz·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260nm
≤1480nm
Cable Type Fiber Count Cable Diameter
mmCable Weight kg/km Supporting Wire Spec Connection Diameter Tensile Strength
Long/Short Term NCrush Resistance
Long/Short Term
N/100mmBending Radius
Static
/Dynamic
mmGYXTC8S 2~12 7.65×14.5 118 Φ1.0mm*7
Stranded wiresHeight×Width
3.0×2.5 mm1000/2500 300/1000 80/160 GYXTC8S 14~24 8.2×15.1 129 Φ1.0mm*7
Stranded wiresHeight×Width
3.0×2.5 mm600/1500 300/1000 90/180 Storage/Operating Temperature : -40℃ to + 60℃
