Indoor multi-core bundle type armored cable (GJAFKV)




  • Description of the product



  • 室内铠-02-gjpfkvv.jpg

  •

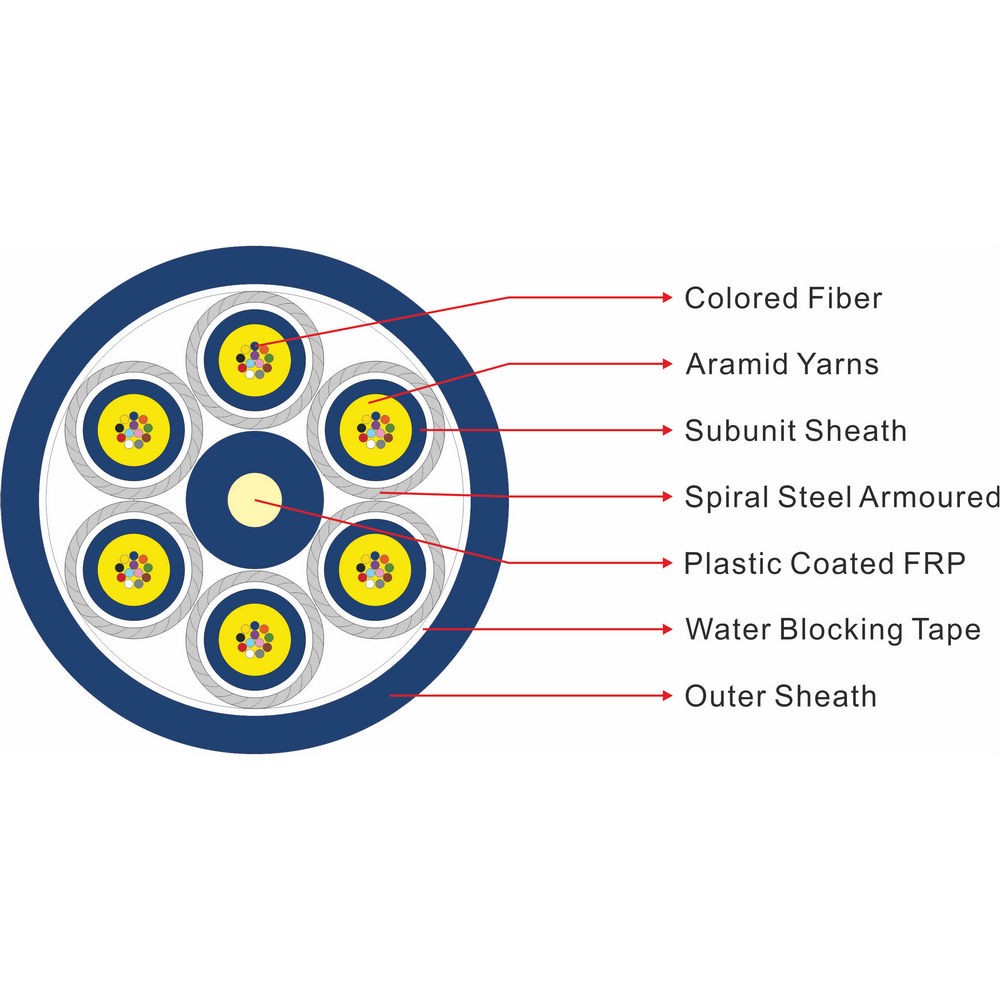

    The structure of the optical fiber cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle, wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC (or LSZH) sheath is extruded cable.

  •



  • Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
             Bending radius is small, light weight, soft, flexible, easy to follow.
             Flat wire armored to improve the optical cable compression and anti-rat ability.
             Has good mechanical and environmental performance.
           Flame retardant or non-flame retardant outer jacket to provide good safety protection.

  •



  • · Various conventional connector products.
         Pigtail, jumper.
         Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.
         Optical connection of optical equipment, instruments, etc.
         Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
         · Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
         The backbone of the tail cable, access to the equipment inside the building.
         · Small installation space and occasional wiring.

  •



  • · GJAFKV cable reference YD / T 2488-2013, IECA-596, GR-409, IEC794 and other standards; In line with UL certification OFNR, OFNP requirements.



  •

  • G.652

    G.655

    50/125 μm

    62.5 / 125 μm

    Attenuation
                 (+ 20 ° C)

    @ 850nm

    ≤3.0dB / km

    ≤3.0dB / km

    @ 1300nm

    ≤1.0dB / km

    ≤1.0dB / km

    @ 1310nm

    ≤0.36dB / km

    -

    @ 1550nm

    ≤0.22dB / km

    ≤0.23dB / km

    Bandwidth
                 (Class A)

    @ 850

    ≥ 500MHZ · km

    ≥ 500MHZ · km

    @ 1300

    ≥1000MHZ · km

    ≥600MHZ · km

    Numerical aperture

    0.200 ± 0.015NA

    0.275 ± 0.015 NA

    Cable cut-off wavelength

    ≤1260nm

    ≤1480nm



  •

  • Cable type
                 Cable Type

    Fiber number
                 Fiber Count


                 Subunit outer diameter  Subunit Diameter
                 mm

    Cable diameter
                 Cable a Diameter
                 mm

    Cable weight
                 Cable Weight
                 Kg / km

    Allowable tension
                 Tensile Strength
                 Long / Short
                 Long / Short Term
                 N

    Allowable pressure
                 Crush Resistance
                 Long / Short
                 Long / Short Term
                 N / 100m

    Bending radius
                 Bending Radius
                 Static / Dynamic
                 the Static / the Dynamic
                 mm

    GJFJV + SV

    72

    3.0

    14.0

    42

    300/750

    200/1000

    20D / 10D

    GJFJV + SV

    144

    3.0

    18.0

    65

    300/750

    200/1000

    20D / 10D





  • Transport Temperature

    -20℃~+60℃

    Storage Temperature

    -20℃~+60℃

    Installation Temperature

    -5℃~+50℃

    Operating Temperature

    -20℃~+60℃

    Storage/Operating temperature:-20℃~﹢60℃
