PLC Splitter
Standard LGX Cassette type PLC Fiber Splitter

- Description of the product
(Insert type PLC Fiber Splitter) 1x(2,4...128) or 2x(2,4...128) (Insert type: SC/UPC, SC/APC... can be choosen).Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS1X N(N≥2)
PARAMETERS1×2
1×4
1×8
1×16
1×32
1×64
1×128
Wavelength (nm)
1260~1650
Fiber type
G657A 1or custom-defined
Pigtail length(m)
1.0(±0.1) or custom-defined
Insertion loss (dB)
≤3.8
≤7.2
≤10.3
≤13.6
≤16.9
≤20.4
≤23.5
Loss uniformity(dB)
max
≤0.8
≤1.0
≤1.2
≤1.5
≤1.8
≤2.0
≤2.0
Return loss (dB)
minimum
55
55
55
55
55
55
55
PDL (dB)
max
≤0.2
≤0.2
≤0.3
≤0.3
≤0.4
≤0.4
≤0.4
Directivity
minimum
≥55
Wavelength related loss(dB)
max
≤0.6
≤0.6
≤0.6
≤0.8
≤1.0
≤1.0
≤1.2
Working temp. ( ℃)
-40~85
Store temp. ( ℃)
-40~85
bare fiber
40×4×4
50×7×4
60×12×4
120*26*10
ABS package size(LxWxH)mm
100×80×10
120×80×18
140×115×18
150*130*25
Mini package size(Lx W x H)mm
55×7×4
60×12×4
80×20×6
100×40×6
120*50*12
2X N(N≥2)
PARAMETERS2×2
2×4
2×8
2×16
2×32
2×64
2×128
Wavelength (nm)
1260~1650
Fiber type
G657A 2 or custom-defined
Pigtail length(m)
1.0(±0.1) or custom-defined
Insertion loss (dB)
≤4.2
≤7.5
≤10.6
≤13.9
≤17.2
≤20.8
≤23.8
Loss uniformity(dB)
max
≤0.8
≤1.0
≤1.2
≤1.5
≤1.8
≤2.0
≤2.0
Return loss (dB)
minimum
55
55
55
55
55
55
55
PDL (dB)
max
≤0.2
≤0.2
≤0.3
≤0.3
≤0.4
≤0.4
≤0.4
Directivity
minimum
≥55
Wavelength related loss(dB)
max
≤0.6
≤0.6
≤0.6
≤0.8
≤1.0
≤1.0
≤1.2
Working temp. ( ℃)
-40~85
Store temp. ( ℃)
-40~85
bare fiber
50×4×4
50×7×4
60×12×4
120*26*10
ABS package size(LxWxH)mm
100×80×10
120×80×18
140×115×18
150*130*25
Mini package size(LxWxH)mm
60×7×4
60×12×4
80×20×6
100×40×6
120*50*12
Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB loss
● FTTH (Fiber to the home)
● Access/PON distribution
● CATV NETWORK
● High reliability/Monitoring/other Network systems1x(2,4...128) or 2x(2,4...128) PLC Splitter in FTTH Solution

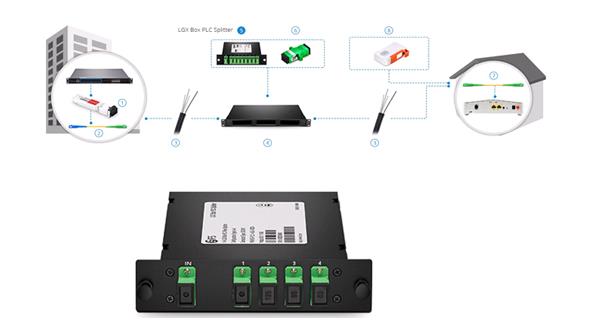

The standard LGX box PLC splitter /Insert type PLC splitter provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployment. The following figure shows 1x4 LGX PLC Splitter applied in the 1U rack chassis in GPON network.
