8*1000 Base-X, 8*10/100/1000Base-T Managed Industrial Switches




  • Description of the product



  •

  • The equipment is 8*1000 Base-X, 8*10/100/1000 Base-T Managed Industrial Ethernet fast switch, through the fan cooling circuit design, wide range working environment temperature, high protection level and other technologies, provide high / low temperature, lightning protection and other outstanding industrial quality, and integrated switching, safety and various rich protocols, simultaneously supported The public Ethernet multi ring protection technology (ERPS) has greatly enhanced the flexibility of the network and enhanced the reliability and security of the industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.



  •


  •



  • Input Voltage: DC12~58V
    Operating Temperature: -40℃ ~ +75℃
    Shell: IP40 protection, fanless design
    Test Report: CCC, RoHS, FCC, CE
    Anti-static: 8KV-15KV
    MTBF: 100000 Hours







  • Provider Mode Ports

    Fixed port

    8*1000 Base-X, 8*10/100/1000 Base-T

    Management Port

    Support Console,RS232(Console)

    Power interface

    Phoenix terminal, DC dual power supply and AC single power supply three power supply redundancy

    LED Indicators

    PWR,Link/ACT LED ,NMC,ALM

    Dialing instructions

    1 C/D

    Console/data choose

    2 LGY

    Standard / non-standard PoE selection

    3 VLAN

    Port isolation

    4 RST

    reset

    Cable type&Transmission distance

    Twisted-pair

    0-100m(CAT5e,CAT6)

    Monomode optical fiber

    20/40/60/80/100KM

    Multimode optical fibre

    550m

    Network Topology

    Ring topology

    Support

    Star topology

    Support

    Bus topology

    Support

    Tree Topology

    Support

    Hybrid topology

    Support

    Electrical Specifications

    Input voltage

    DC12~58V

    Total Power consumption

    Non-PoE <15W; PoE <255W (DC only)

    过压告警(Voltage Alarm)

    Support

    PoE support can be added

    PoE port

    1-8

    PoE Protocol

    802.3af,802.3at

    Pin Assignment

    1,2,3,6

    PoE Mode

    Standard & non-standard support

    PoE Management

    Not support

    Remote PD Reset

    Support

    Layer 2 Switching

    Switching capacity

    54G

    Packet forwarding rate

    23.8 Mpps

    MAC address table

    8K

    VLAN

    Support 4K

    Buffer

    4M

    Forwarding delay

    <10us

    MDX/MIDX

    Support

    Flow control

    Support

    Jumbo Frame

    Support 9.6Kbytes

    Spanning Tree

    Support STP/RSTP/MSTP

    Ring Protocol

    Support ERPS

    Link Aggregation

    Support 8 group

    Linear Protection Of Ethernet

    Support ELPS

    Port isolation

    Support

    Management

    CLI

    Support

    Management IP

    Support static IPV4, DHCP IPV4

    Console

    Support

    Telnet

    Support

    WEB management

    Support

    SNMP

    Support SNMPv1/v2c/v3

    User Management

    Support

    System Log

    Support

    Configuration File Download/Upload

    Support

    Upgrade Firmware

    Support

    Environment

    Operating temperature

    -35℃~+70℃

    Storage temperature

    -35℃~+85℃

    Relative humidity

    5%~95% (non-condensing)

    Thermal methods

    Fanless, natural cooling

    MTBF

    100,000 hours

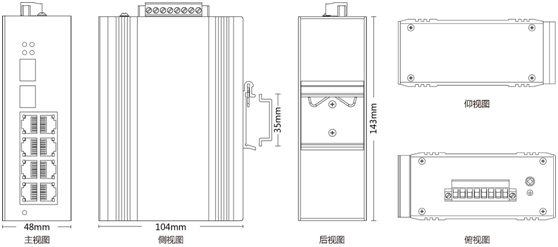

    Mechanical Dimensions

    Product size

    143X104X48mm

    Installation Method

    DIN-rail

    Weight

    0.7KG

    EMC&INGRESS PROTECTION

    IP Level

    IP40

    Surge protection of Power

    IEC 61000-4-5  Level X(4KV/2KV)(8/20us)

    Surge protection of Ethernet port

    IEC 61000-4-5  Level 4(4KV/2KV)(10/700us)

    ESD

    IEC 61000-4-2  Level 4(8K/15K)



    Authentication

    Authentication

    CCC/CE/FCC/RoHS

    Accessories

    Accessories

    Device, Terminals, Specification, Certificate
                 Adapter(optional)



    Optional Model

    XPTN-9000-45-8GX8GP-M

    8*1000Mbps SFP Ports,
                 8*10/100/1000M RJ45 Ports PoE
