Industrial Ethernet Switch
2*1000Base-X, 4*10/100/1000Base-T Industrial Ethernet PoE Switches
- Description of the product
This device is 2*1000Base-FX & 4*10/100/1000Base-T Industrial Ethernet Switches. Through the fanless heat dissipation circuit design, wide range of working environment temperature, high protection level and other technologies, it provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. It can better meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.
Input Voltage: DC12-58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hour
Provider Mode Ports
Fixed port
2*1000 Base-X, 4*10/100/1000Base-T
Power interface
Phoenix terminal, redundant dual power supply
ssusupplysupply
LED Indicators
PWR，OPT ,NMC，ALM
DIP Switch
1 C/D
Remote PD Reset
2 LGY
Stand/Non-standard PoE Mode
3 VLAN
Port Isolation
4 RST
Reset
Cable Type & Transmission Distance
Twisted-pair
0-100m（CAT5e,CAT6）
Monomode optical fiber
20/40/60/80/100KM
Multimode (optical) fiber
550m
Network Topology
Ring topology
Unsupported
Star topology
Support
Bus topology
Support
Tree Topology
Support
Hybrid topology
Support
Electrical Specifications
Input voltage
DC12-58V
Total Power consumption
<6W
Voltage Alarm
Support
Layer 2 Switching
Switching capacity
14G
Packet forwarding rate
10.416Mpps
MAC address table
8K
VLAN
Unsupported
Buffer
1M
Forwarding delay
<5us
MDX/MIDX
Support
Flow control
Support
Jumbo Frame
Support 10Kbytes
WatchDog
Support
Port Isolation
Support
Environment
Operating temperature
-40℃~+75℃
The device is tested for 4 hours at temperatures in 85℃Storage temperature
-40℃~+85℃
Relative humidity
5%~95% non-condensing
Thermal methods
Fanless, natural cooling
MTBF
100,000 hours

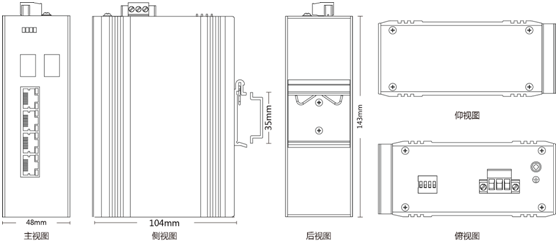

Mechanical Dimensions
Product size
143X104X48mm
Installation Method
DIN rail
Weight
0.6KG around
EMC & Ingress Protection
IP Level
IP40
Surge protection of Power
IEC 61000-4-5 Level X（6KV/6KV）（8/20us）
Surge protection of Ethernet port
IEC 61000-4-5 Level X（4KV/4KV）（10/700us）
RS
IEC 61000-4-3 Level 3（10V/m）
EFI
IEC 61000-4-4 Level 3（1V/2V）
CS
IEC 61000-4-6 Level 3（10V/m）
PFMF
IEC 61000-4-8 Level 4（30A/m）
DIP
IEC 61000-4-11 Level 3 （10V）
ESD
IEC 61000-4-2 Level 4（8K/15K）
Free fall
0.5m
Authentication
Authentication
CCC, CE, FCC, RoHS
Accessories
Accessories
Device, Terminals, Specification, Certificate, power adapter(optional)
（选配）Optional Model
XPTN-9000-65-2GX4GP
2*1000Mbps SFP Port
4*10/100/1000Mbps RJ45 Port, PoE 802.3af & atXPTN-9000-65-2GX4GP-SC
2*1000Mbps SC Port
4*10/100/1000Mbps RJ45 Port, PoE 802.3af & at
自适应电口（PoE可选配）XPTN-9000-65-2GX4GP-FC
2*1000Mbps FC Port
4*10/100/1000Mbps RJ45 Port, PoE 802.3af & atXPTN-9000-65-2GX4GP-ST
2*1000Mbps ST Port
4*10/100/1000Mbps RJ45 Port, PoE 802.3af & at
