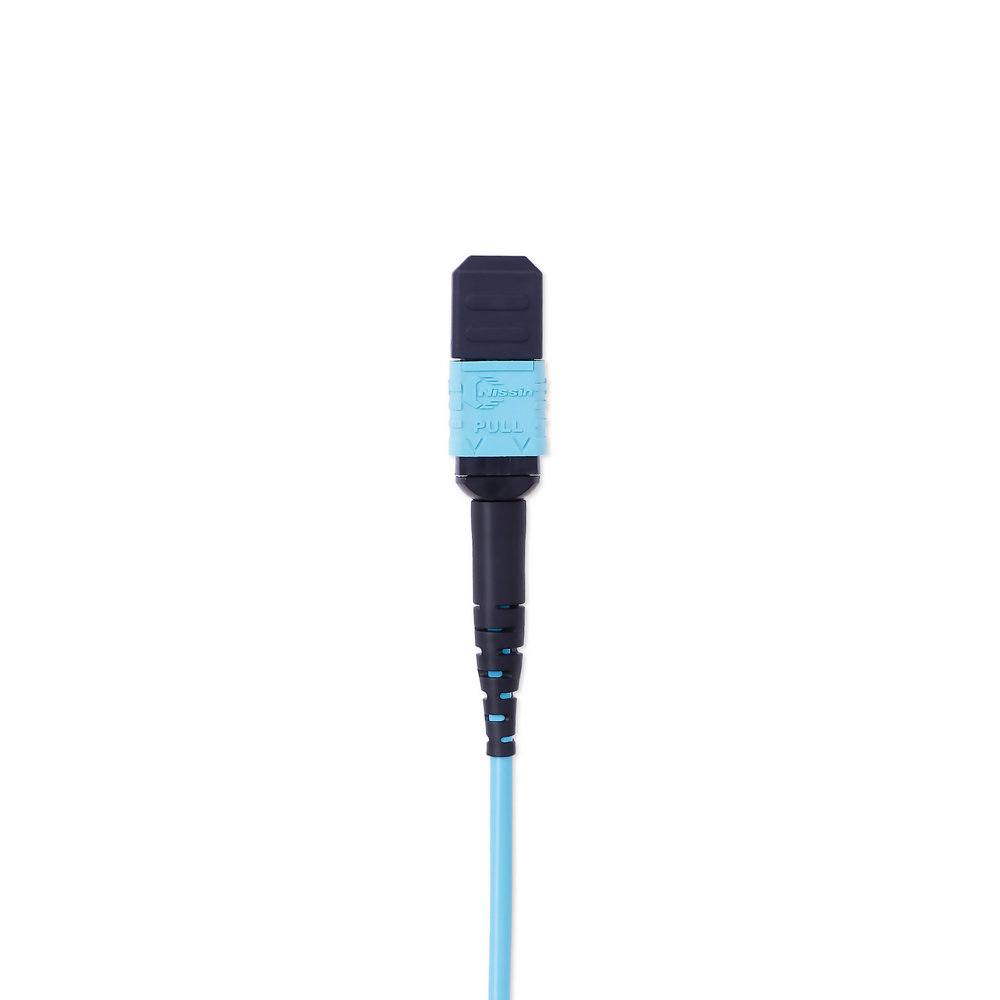

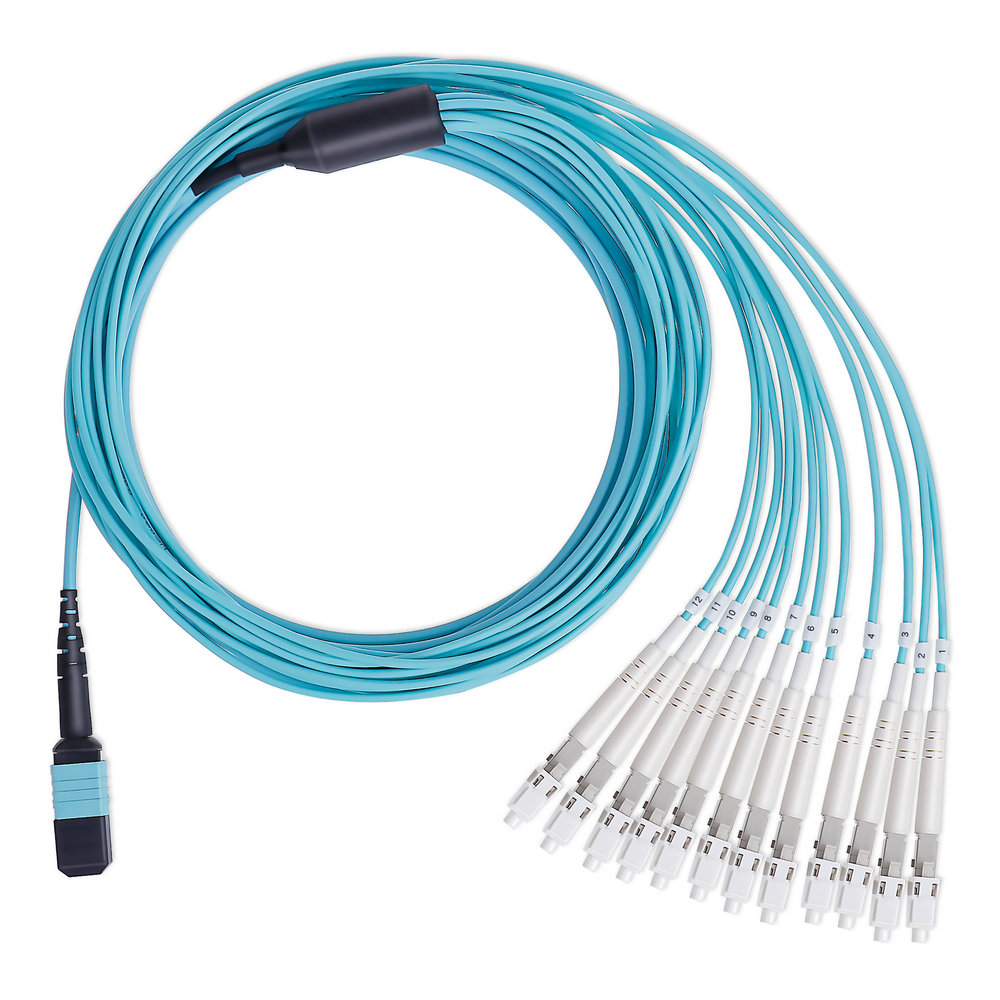

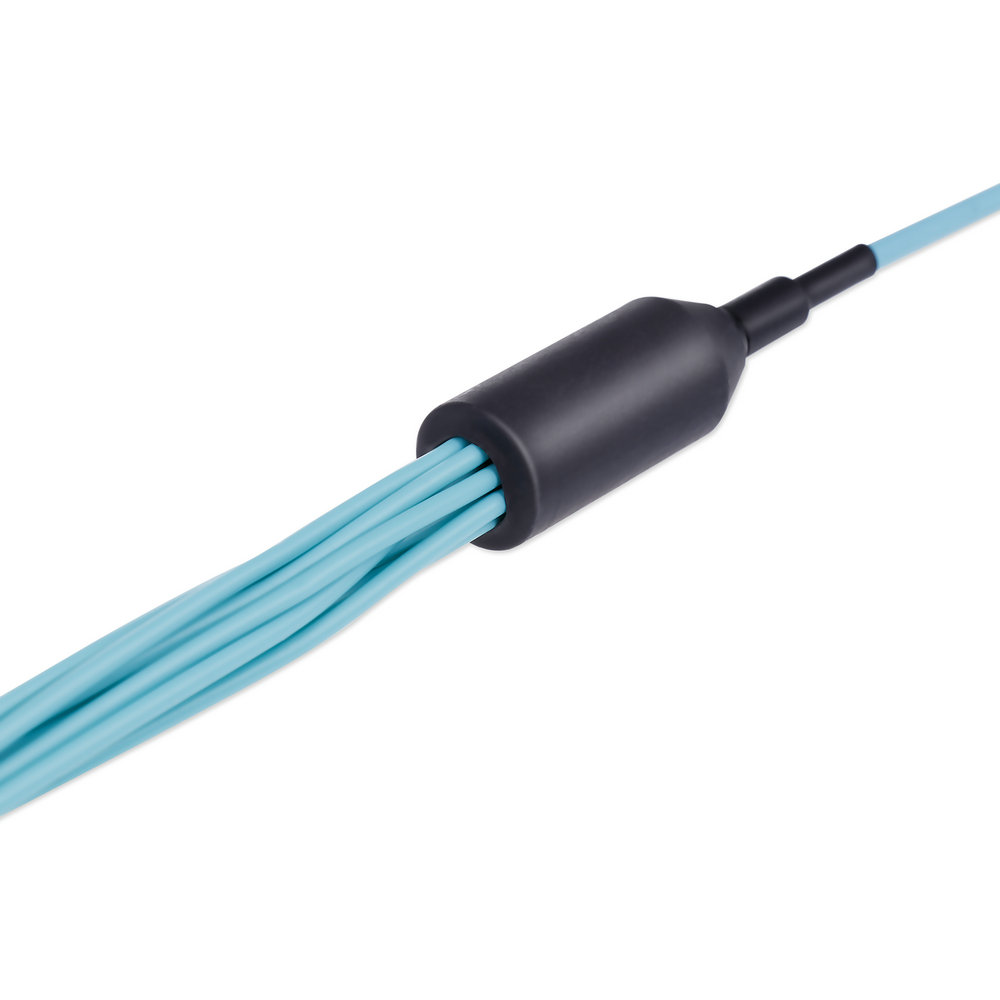

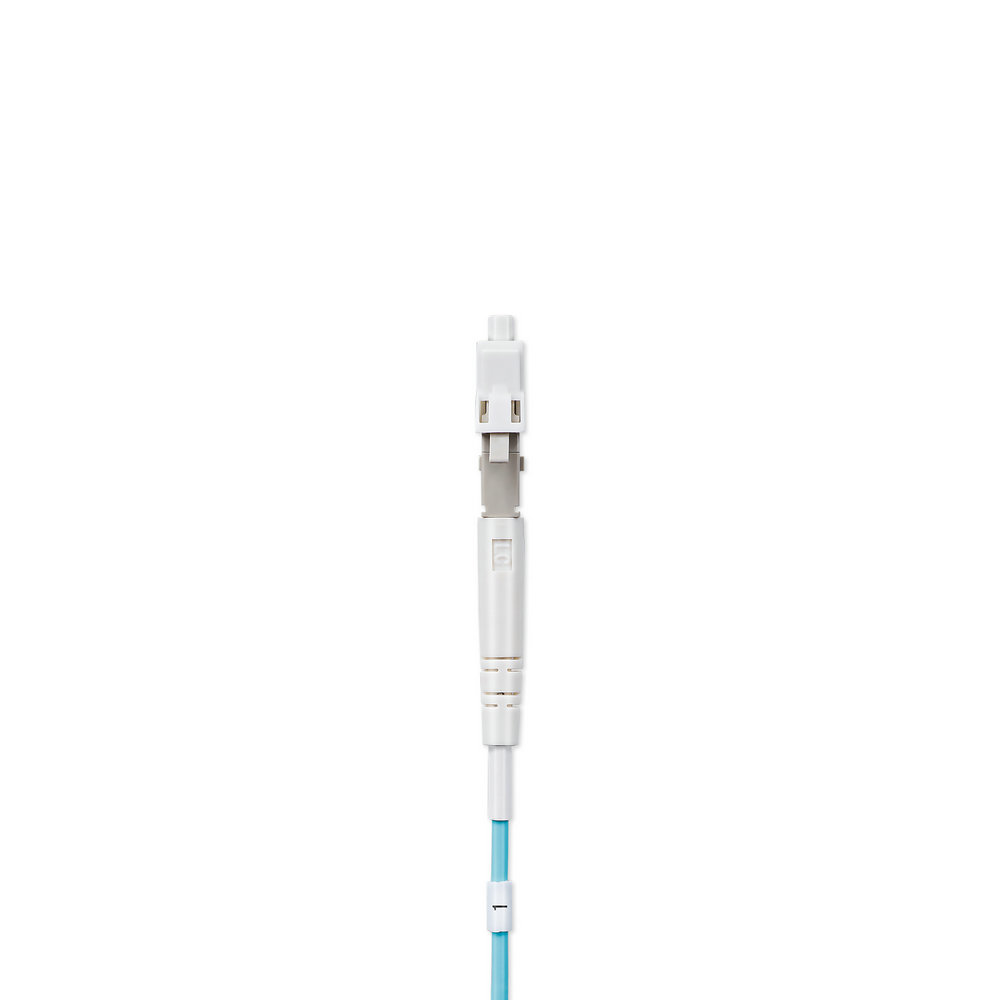

MTP-LC fiber optic patch cord




  • Description of the product



  •



  •

  • Feature

    SM , MM

    SM , MM

     Type of connector

    MPO/MTP 12f/24f

    FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000

     Diameter(mm)

    2.0/3.0/3.6 etc

    0.9,2.0,3.0

     Polish

    MM UPC

    MM APC

    SM UPC

    SM APC

    MM UPC

    MM APC

    SM UPC

    SM APC

     Insert Loss

    ≤0.35dB

    ≤0.35dB

    ≤0.35dB

    ≤0.35dB

    ≤0.3dB

    ≤0.3dB

    ≤0.3dB

    ≤0.3dB

     Return Loss

    ≥25dB

    ≥25dB

    ≥50dB

    ≥60dB

    ≥25dB

    ≥50dB

    ≥60dB

     Exchangeability

    ≤0.2dB

    ≤0.2dB

     Repeatability

    ≤0.2dB

    ≤0.2dB

     temperature range(℃)

    -40~+85

    -40~+85

    If you need IL≤0.25dB, IL≤0.2dB, IL≤0.15dB, Necero factory can offer it as well. Contact us!!!
