NCR-8208A (1000M single-mode single fiber duplex way) media convector used for the exchanging between Ethernet and fiber.The machinecomprises1 Ethernet port and 1 fiber port,and expanded the LAN cable transmission distance from 1000 meters to 20 kilometers. It realized the inter connections between different telecom equipment and widely been used in Telecommunication,CATV,Bandwidth network,CCTV where demands high performance and reliability network environment.

·  Special used for exchanging between Ethernet LAN cable and Fiber
·  Special made chip with low consumption,supporting over longtime frame
·  Superior Photoelectric integrated module which provide good optical and  electrical performance
·  Ensure the reliability of data transmitting,long operating life span
·  Support Internal and External:1.5U rack mount,optional installation method
·  Average of No trouble working time to 50000 hours,meet the ITU-T standard
·  Integrated  after selling services, 3  years warranty, lifetime Maintenance Service

·Standard:IEEE  802.3 10BaseT，IEEE 802.3u 100Base-TX，100Base-FX,IEEE 802.3z/AB 1000Base-T/SX/LX/ZX
·  Interface:Twisted pair cable:RJ45;Fiber:SC/ST/FC
·  1000 base LED:PWR, FX 1000，FX Link/Act，FDX，TX 1000，TX Link/Act
·  Transmission Speed: LAN cable:10Mbps,100Mbps,100Mbps，Fiber:1000Mbps
·  Duplex Way: Ethernet duplex or half duplex
·  Flow control: Full duplex IIEEE 802.3x flow control:Half duplex back flow  control
·  LAN Cable: Category 5,Category 5E,Category 6
·  Fiber Type: Single mode 8.3/125u,8.7/125u,9/125u,10/125u
·Power:AC:110v-240v  wide voltage input,50Hz;DC:12V 0.5A(Compatible 5-19V,6W),equipped with  USA,British,Europe,Austria total 4 types changeable plug
·  Environment Temperature：-20～65℃。
·  Storage Temperature：-20～70℃。
·  Humidity：5%～90%。

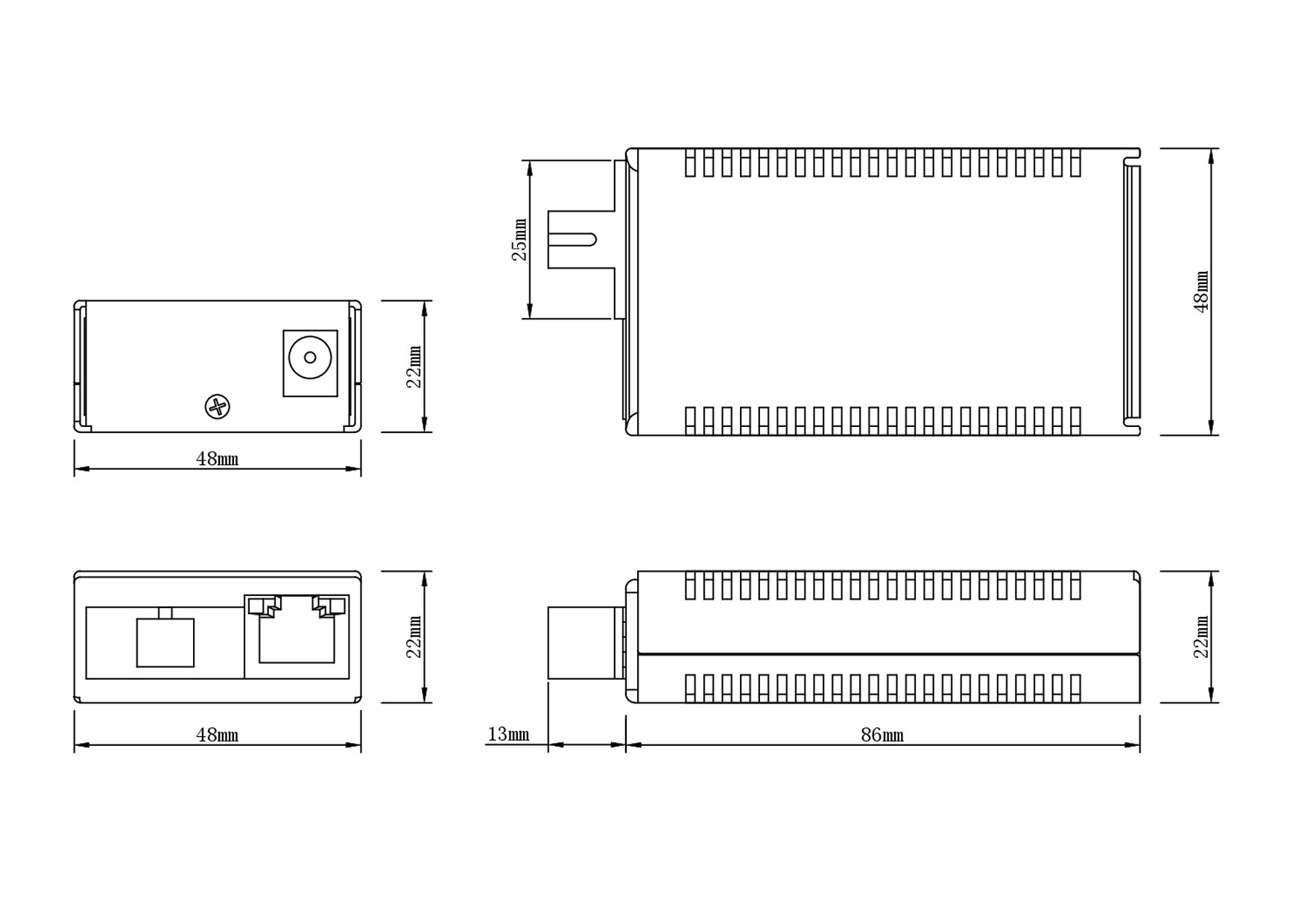

·  Size：86×48×22mm((H×D×W)。

·  IEEE 802.3 Ethernet
·  IEEE 802.3U Ethernet
·  IEEE 802.3ab Ethernet
·  IEEE 802.3z Ethernet
·  IEEE 802.1d Spanning Tree

·  Inter cities  fiber optic network:  Applied in telecom and CATV data network operators
·  Bandwidth application: Applied in Financial,governmental,oil,railway,power  grid,transportation,education special networks
· Data transmission:  image, voice, data comprehensive transmission,applicable for remote education,  video conference, CCTV surveillance control signal,image and data simultaneous  transmission
