FTTH Cable GJXFH FRP




  • Description of the product

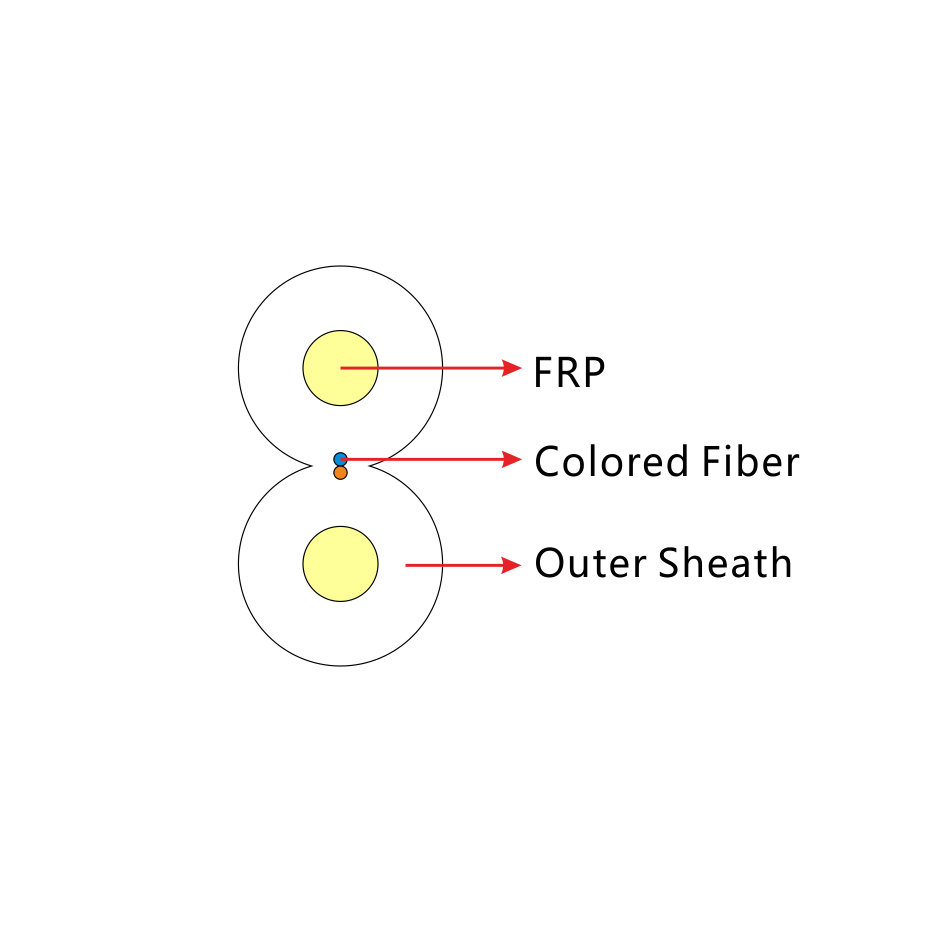

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP/KFRP) are placed at the two sides. Then the cable is completed with a black or colored LSZH sheath.







· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
 · Two parallel FRP strength members ensure good performance of crush resistance to protect the
 fiber;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.






G.652

G.655

50/125μm

62.5/125μm

@850nm





≤3.5    dB/km

≤3.5    dB/km



@1300nm





≤1.5    dB/km

≤1.5    dB/km



@1310nm

≤0.40    dB/km

≤0.40    dB/km







@1550nm

≤0.30    dB/km

≤0.30dB/km







@850nm





≥500    MHz·km

≥200    MHz·km



@1300nm





≥500    MHz·km

≥500    MHz·km



Numerical    Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength

≤1260nm

≤1260nm









Fiber count

Cable Diameter mm

Cable Weight kg/km

Tensile Strength Long
     /Short Term N

Crush
     Resistance    Long
     /Short    Term N/100mm

Bending Radius Static /Dynamic mm

1

(2.0±0.2)×(3.0±0.2)

8

40/80

500/1000

20/40

2

(2.0±0.2)×(3.0±0.2)

8

40/80

500/1000

20/40

4

(2.0±0.2)×(3.0±0.2)

8

40/80

500/1000

20/40

6

(2.5±0.2)×(4.0±0.2)

8.5

40/80

500/1000

20/40

8

(2.5±0.2)×(4.0±0.2)

9.0

40/80

500/1000

20/40

12

(3.0±0.2)×(4.0±0.2)

9.7

40/80

500/1000

20/40

Storage/Operating  Temperature : -20℃ to + 60℃
