FTTH Cable
GJFJU (TPU) cable
- Description of the product

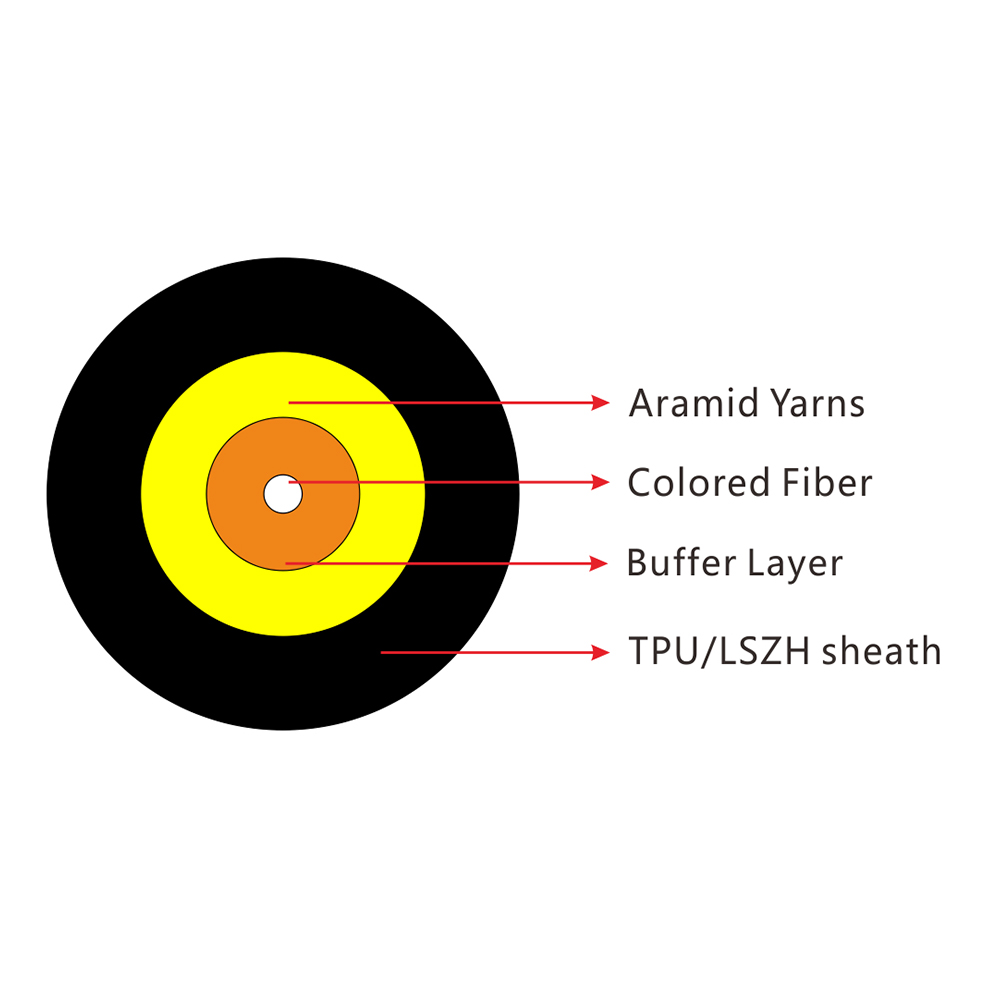

The GJFJU optical cable is constructed with ф900μm tight buffer fibers surrounded by Aramid yarns as strength member, covered with TPU or LSZH outer sheath.
Optical cable with Aramid yarns reinforcement
For customer connection
Fully dielectric cable
Last mile connection
LAN and FTTX networks
Distribution network
ODF connections
Inside house OLT connection
G.657B3 optical fiber
Flame retardant TPU sheathing
UV protection and environmental protection;
Fiber type | Maximum attenuation for uncabled fibers | |||||
1310 nm | 1383 nm | 1490 nm | 1550 nm | 1625 nm | ||
G.657A1 | Bend insensitive fiber fully compatible with G.652D standard, bend radius 10-15 mm | ≤0.35 | ≤0.35 | ≤0.24 | ≤0.20 | ≤0.23 |
G.657A2 | Bend insensitive fiber fully compatible with G.652D standard, bend radius 7.5 mm | ≤0.35 | ≤0.35 | ≤0.24 | ≤0.20 | ≤0.23 |
G.657B3 | Bend insensitive fiber fully compatible with G.652D standard, bend radius 5 mm | ≤0.35 | ≤0.35 | ≤0.24 | ≤0.20 | ≤0.23 |
Item | Description | |
Tight Buffer Fiber | Fiber Count | 1FO |
| Fiber Type | G.657B3 |
| Fiber Color | Natural |
| Diameter | 0.9mm |
| Tight Buffer Color | Blue or Customized color |
| Material | LSZH |
Strength Member | Material | Aramid yarn |
Outer Sheath | Material | TPU |
| Color | Black |
| Thickness | 0.7~0.8mm |
| Diameter | 3.0±0.1mm |
Span | 50~100m | |
Installation Sag | 1% | |
Max. Wind Speed | 50km/ hour | |
Tensile | 800N | |
Strain | 0.6% | |
Cable Weight | 9.8kg/ km | |
Storage/Operating Temperature:－40℃～＋70℃
