• Description of the product

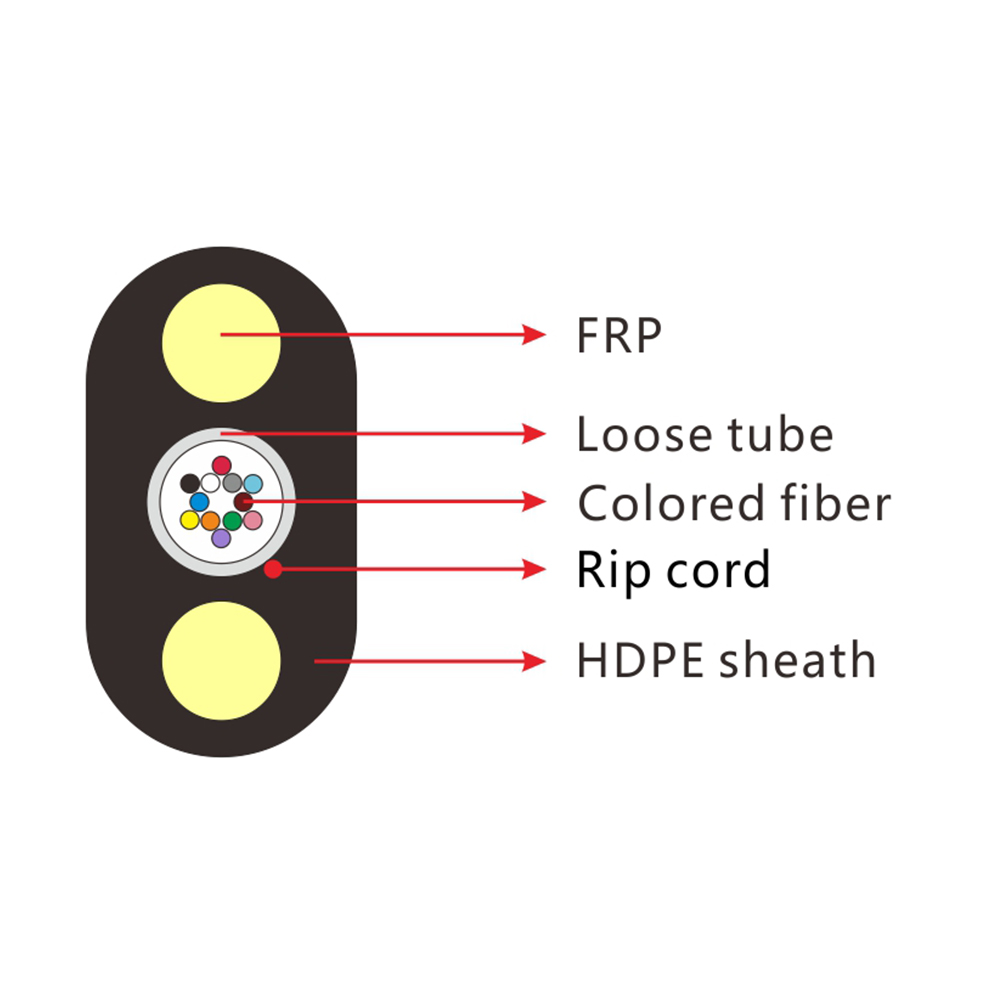

The cable is an arc runway fiber cable, which is made of multiple ( 1 – 12 cores ) 250 μm colored optical fibers ( single-mode or multi-mode fibers ) embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.

·  Accurately  controlling the residual length of optical fiber ensures good tensile  properties and temperature characteristics of optical cable
 ·  PBT loose tube material has good resistance to hydrolysis, filled with special  ointment to protect the optical fiber
 ·  Fiber optic cable is non-metallic structure, light weight, easy laying,  anti-electromagnetic, lightning protection effect is better
 · Larger  number of core than ordinary butterfly-shaped optical cable products, suitable  for access to more densely populated villages
 ·  Compared with butterfly-shaped optical cable, runway structure products have  stable optical transmission performance with no risk of water accumulation,  icing and egg cocoon
 ·  Easy to peel, reduce the time of pulling out the outer sheath, improve the  construction efficiency
·  It has the advantages of corrosion resistance, UV protection and environmental  protection

·  YD / T769-2010, GB / T 9771-2008, IEC794 and other standards
 ·  In addition to ordinary PE products, if LSZH products choose different  materials, can meet IEC 60332-1 or IEC 60332-3C certification

Storage/Operating Temperature : -20℃ to + 60℃
