FTTH Cable
FTTH Cable (GYXTPY )
- Description of the product

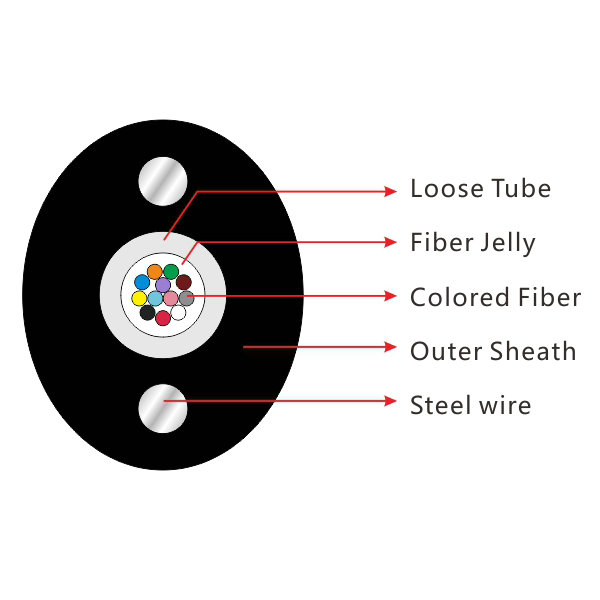

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Inexpensive and can reduce operating costs
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
· Long delivery length
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation(+20℃) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
@1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | |
@1310nm | ≤0.00 dB/km | ≤0.00dB/km |
|
| |
@1550nm | ≤0.00 dB/km | ≤0.00dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥500 MHz·km | ≥500 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength | ≤1260nm | ≤1480nm |
|
| |
Cable type | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long | Crush | Bending Radius Static /Dynamic mm |
GYXTPY | 1~12 | 5.0*6.0 | 29 | 250/500 | 300/1000 | 12.5D/25D |
Storage/Operating Temperature : : -40℃ - + 70℃
