FTTH Cable
FTTH Cable GJYXFCH FRP
- Description of the product

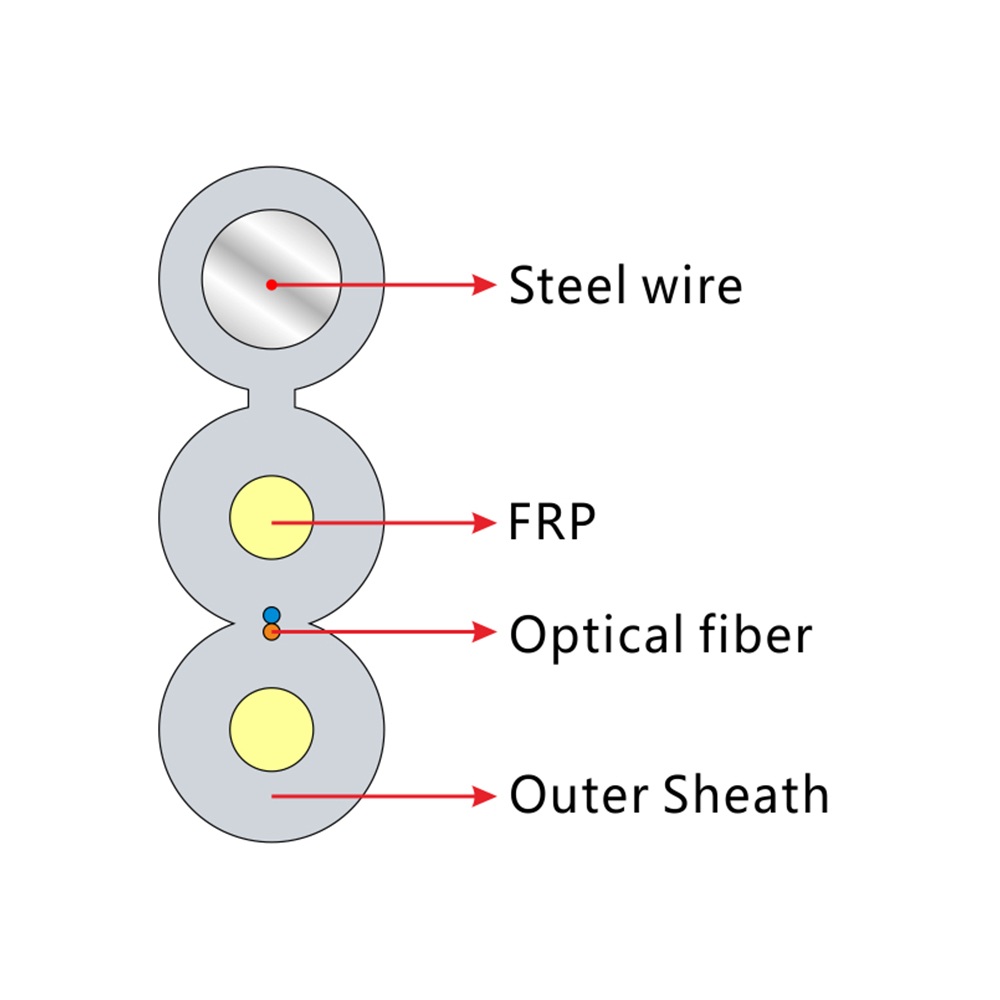

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP/KFRP/STEEL) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or colored LSZH sheath.
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Single steel wire or messenger as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
| G.652 | G.657 | 50/125μm | 62.5/125μm | |
Attenuation | @850nm |
|
| ≤3.5 dB/km | ≤3.5 dB/km |
@1300nm |
|
| ≤1.5 dB/km | ≤1.5 dB/km | |
@1310nm | ≤0.40 dB/km | ≤0.40 dB/km |
|
| |
@1550nm | ≤0.30 dB/km | ≤0.30dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥500 MHz·km | ≥500 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength | ≤1260nm | ≤1260nm |
|
|
Fiber count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long | Crush | Bending Radius Static /Dynamic mm |
1 | (2.0±0.)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
2 | (2.0±0.2)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
4 | (2.0±0.2)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
6 | (2.5±0.2)×(6.0±0.2) | 24 | 300/600 | 1000/2200 | 20/40 |
8 | (2.5±0.2)×(6.0±0.2) | 24 | 300/600 | 1000/2200 | 20/40 |
12 | (2.0±0.)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
Storage/Operating Temperature : -20℃ to + 60℃
