Indoor Optical Cable
Tight Buffer Fiber Duplex Indoor Cable(GJFJV)
- Description of the product

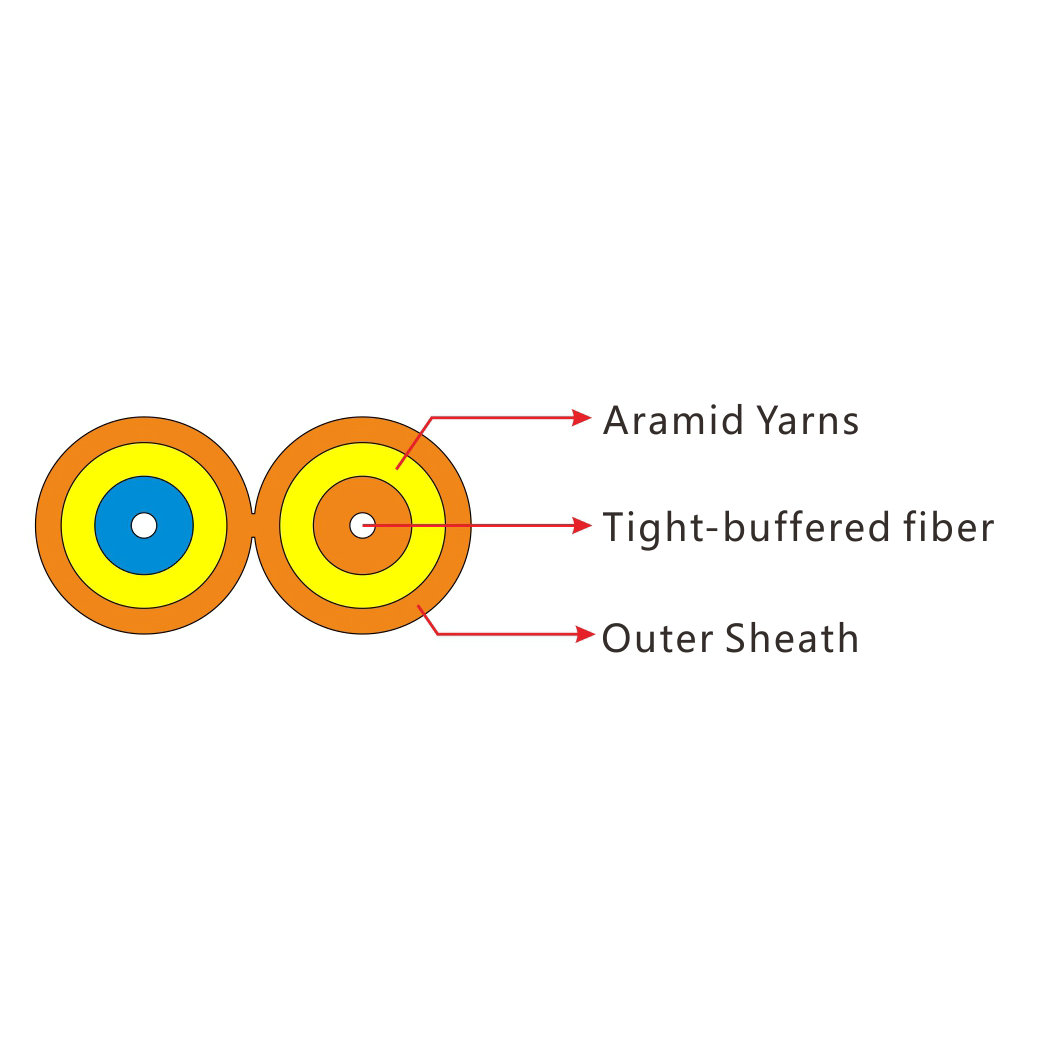

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
·Good performance of flame-retardant
·Steady performance both in extremely high and low temperature.
·Excellent geometrical dimension of the fiber.
Data Communication
·Making connector
·Installation: Riser,Plenum,inter-layer,pipe & trunking
·Located in where waterproof isn't strictly required
·Patch cord, Pigtail & Indoor distribution
GJFJV cable complies with Standard YD/T1258.2-2003、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR
DXC-IV
DXC-III
DXC-II
DXC-I
Cable Diameter
3.0*6.1±0.2mm
2.8*5.7±0.2mm
2.0*4.1±0.2mm
1.6*3.3±0.2mm
Cable Weight
14kg/km
13.2kg/km
7.4kg/km
5.7kg/km
Tight Buffer Fiber Diameter
900±50μm
900±50μm
900±50μm
600±50μm
Tensile Strength
Long term
120N
120N
80N
60N
Short term
250N
250N
150N
120N
Crush Resistance
Long term
100N/100mm
100N/100mm
100N/100mm
100N/100mm
Short term
500N/100mm
500N/100mm
500N/100mm
500N/100mm
Bending Radius
Dynamic
20XD
20XD
20XD
20XD
Static
10XD
10XD
10XD
10XD
G.652
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)@850nm
≤3.0dB/km
≤3.0dB/km
@1300nm
≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
--
@1550nm
≤0.22dB/km
≤0.23dB/km
Wavelength
（Class A）@850
≥500MHZ·km
≥500MHZ·km
@1300
≥1000MHZ·km
≥600MHZ·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260nm
≤1480nm
Transport Temperature
-20℃～﹢60℃
Storage Temperature
-20℃～﹢60℃
Installation Temperature
-5℃～﹢50℃
Operating Temperature
-20℃～﹢60℃
