Indoor Optical Cable

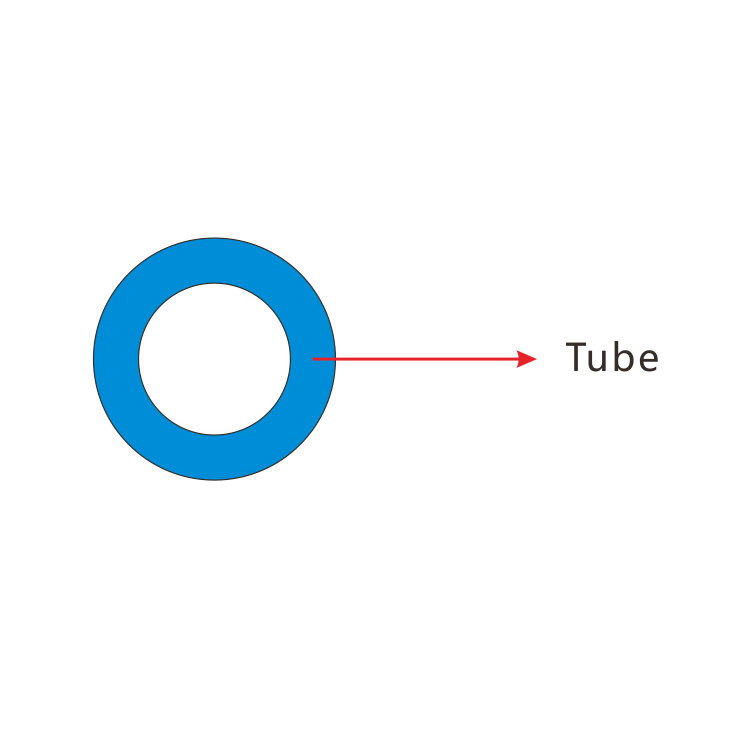

Furcation tube
- Description of the product
Furcation tube made of LSZH(PVC) or Hytrel.
Outer jacket color: according to the standard specified color or other colors
Ultra low shrinkage
Small bending radius
The length of fiber pass through the furcation tube up to 10 meters at a time
Soft, flexible and fiber easy to pass through
Protect splitter fiber
Model No.
Outside diameter
Inside diamter
Cable Weight
Thermal shrinkage
Hytrel Furcation tube
0.9mm
0.45mm
0.6kg
<0.5%
2.05mm
1.57mm
1.6kg
<0.5%
LSZH Furcation tube
1.7mm
1.3mm
1.5kg
<2.0%
2.5mm
1.8mm
3.5kg
<2.0%
Work Temperature
Hytrel
－40℃～＋85℃
LSZH
－40℃～＋60℃
Fiber optic cable diameter: standard fiber optic cable diameter, or other agreed upon diameters;

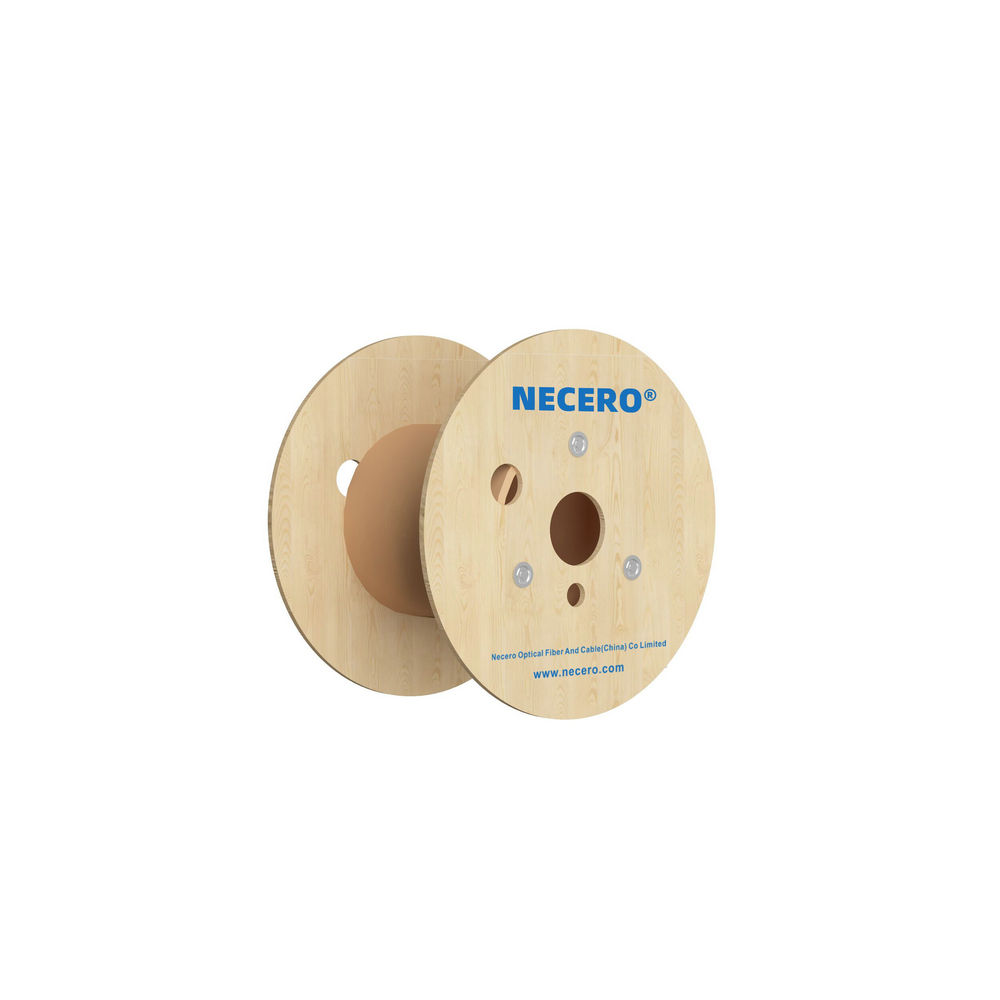

Delivery length: 1.0km or 2.0km, or other agreed lengths;
Other requirements: Other special requirements agreed upon
