Indoor Steel Armored Fiber Optic Cable (GJFJH53)




  • Description of the product

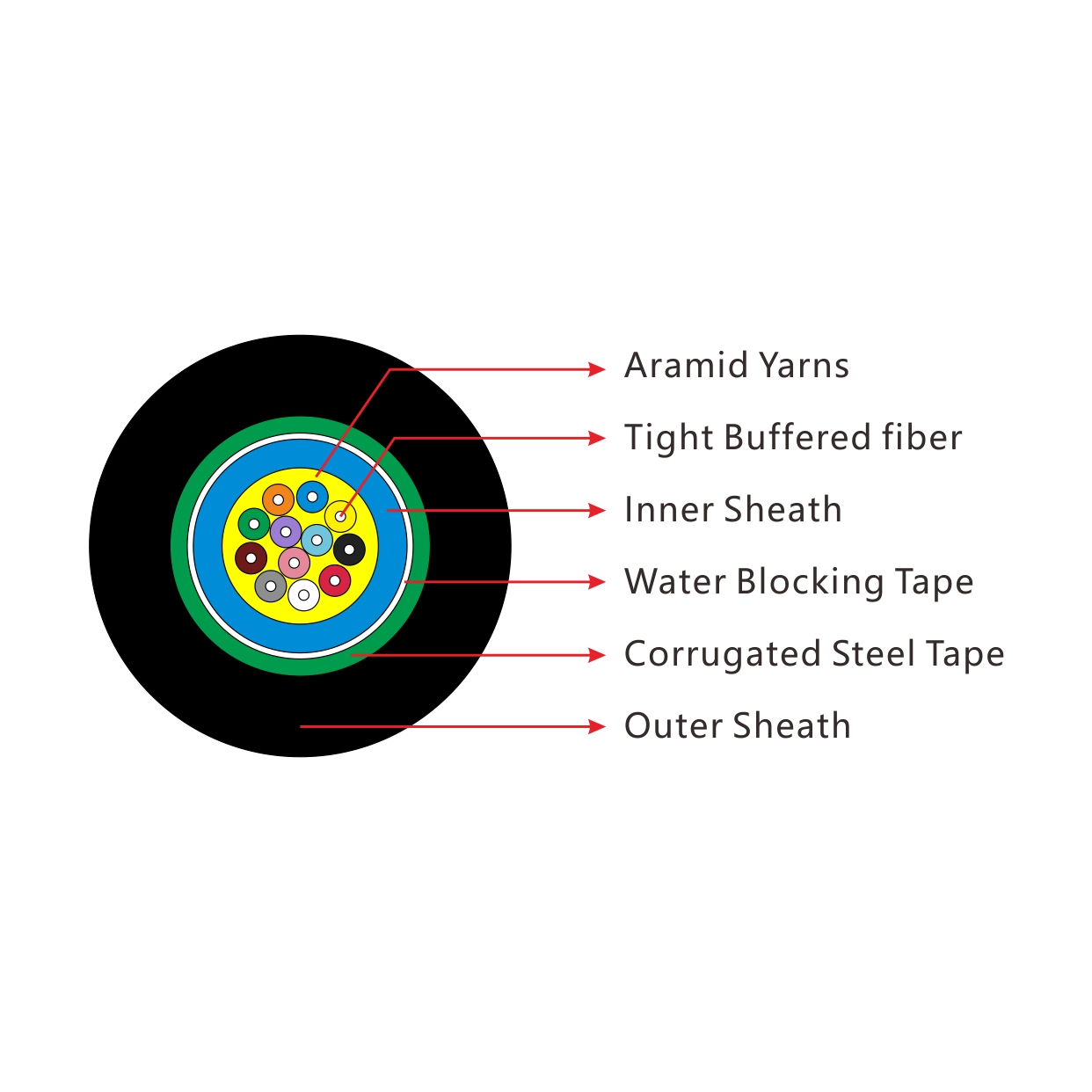

The 0.9mm or 0.6mm tight buffer stranded with aramid yarns,sheathed with LSZH as inner jacket,covered with PSP corrugated steel taps beneath the inner and PE outer jacket.







·Multicore fibers with armor outer jacket to enhance the attribute of crushing resistance and anti rodent.

·High strength aramid reinforced, high performance jacket material.

·Good mechanical and environment performance.

·Excellent Transverse water-blocking.





·GJFJH53 cable complies with standard YD/T1258.4-2003、GB/T13993 、IECA-596、GR-409、IEC794 and other standards.






       G.652

G.655

50/125μm

62.5/125μm

Attenuation
       (+20℃)

@850nm



≤3.0dB/km

≤3.0dB/km

@1300nm



≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km




@1550nm

≤0.22dB/km

≤0.23dB/km



Bandwidth>(Class A)

@850



≥200MHZ·km

≥200MHZ·km

@1300



≥500MHZ·km

≥500MHZ·km

Numerical Aperture




0.200±0.015NA

0.275±0.015NA

Cable cut-off wavelength


≤1260nm

≤1480nm







Cable Type

Fiber Count

Tight Buffer    Diameter
       mm

Cable Diameter
       mm

Cable Weight
       Kg/km

Tensile Strength
       Long/Short Term
       N

Crush Resistance
       Long/Short Term
       N/100m

Bending Radius
       Static/Dynamic
       mm

GJFJH53

12

0.9

12.5

124

400/800

200/1000

30D/105D

GJFJH53

24

0.9

13.5

158

400/800

200/1000

30D/105D


   ·Storage/Operating Temperature:-20℃ to +60℃






  • 3(1).jpg
