Tight Buffer Fiber 2-24 cores Bundle Cable(GJFJV)

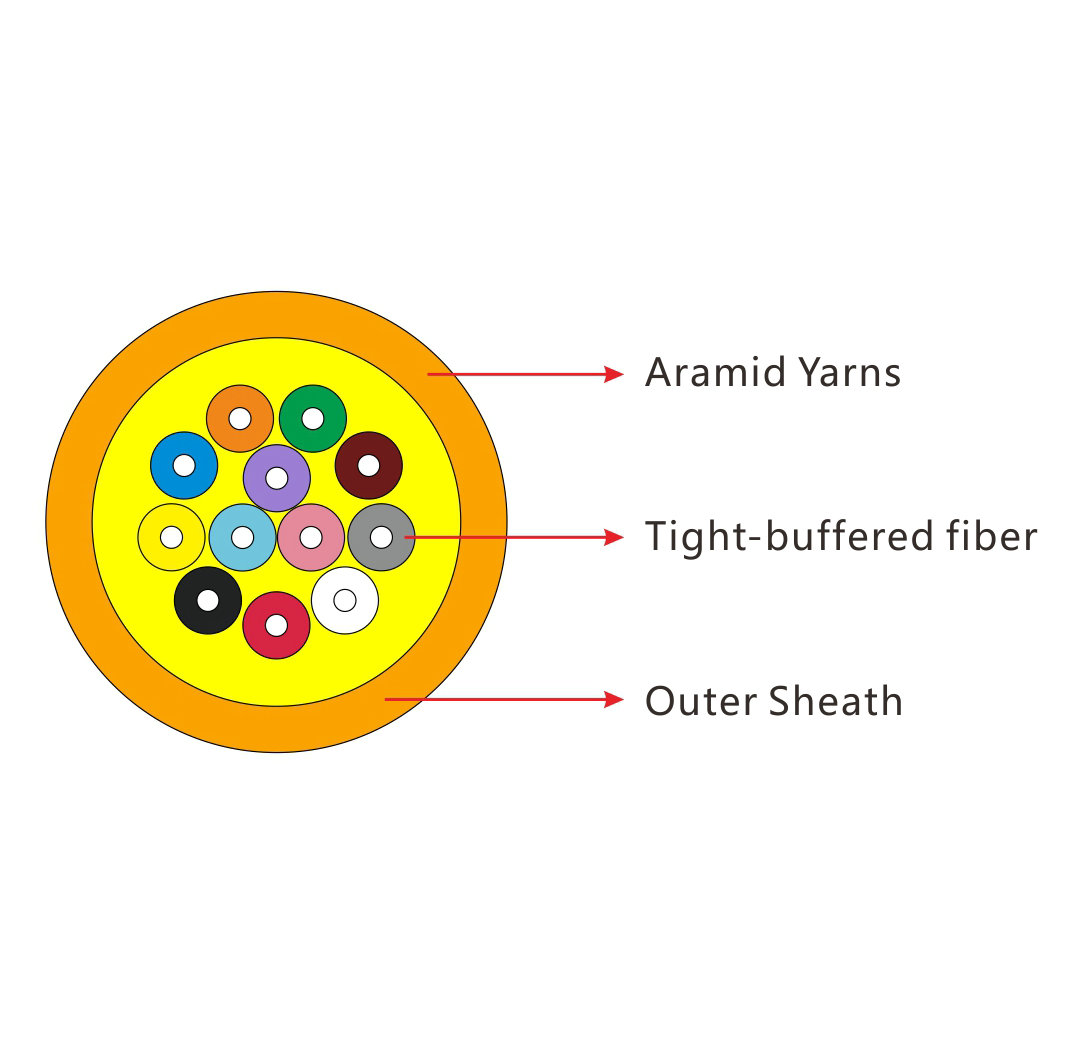

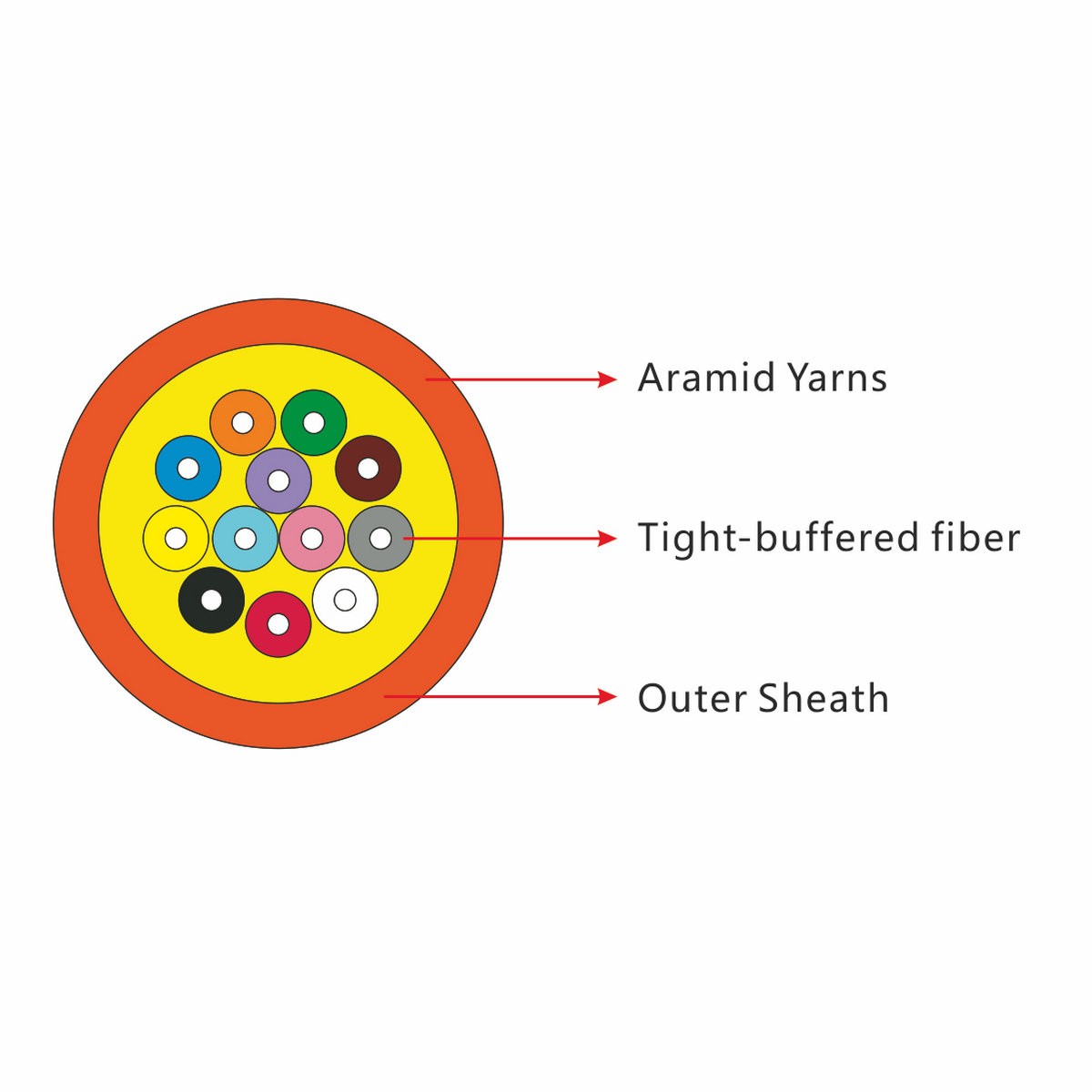

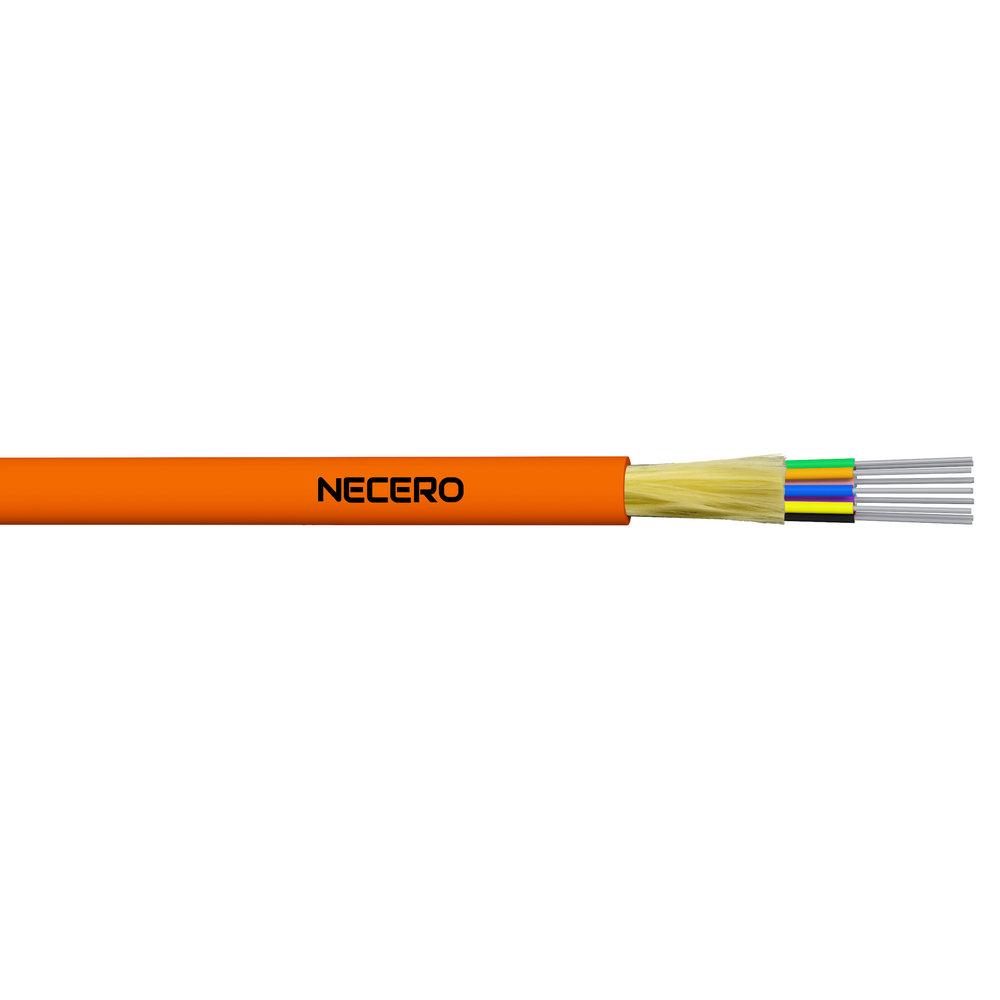

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

·Small diameter, light weight,flame retardant,excellent strippability
·Low-attenuation,High flexibility
·No need for transition connector box or pigtail between tight buffer fiber and cable,low cost with installation cause to it’s no needs to clean the water-proofing ointment.
·Suitable for Indoor distribution
·Pigtail jumper, patch cord
·Optical connection of Communication equipment and connection machine.
·Floor installation, maintenance friendly
·GJFJV cable complies with Standard YD/T1258.2-2009、ICEA-596、GR-409、IEC794 etc;
and meets with the requirements of UL approval for OFNR and OFNP.
MPC-02
MPC-04
MPC-06
MPC-08
MPC-10
MPC-12
Cable Diameter(mm)
4.1±0.25
4.8±0.25
5.1±0.25
6.2±0.25
6.5±0.25
6.8±0.25
Cable Weight(kg/km)
12
20
24
29
32
35
Tight Buffer Fiber Diameter
900±50μm
Tensile Strength
Long Term
80N
60
50
Short Term
150N
120
100
Crush Resistance
Long Term
100N/100mm
100N/100mm
100N/100mm
Short Term
500N/100mm
500N/100mm
500N/100mm
Bending Radius
Dynamic
20XD
20XD
20XD
Static
10XD
10XD
10XD
