Optical Termination Box
ATB Access Terminal Box
- Description of the product

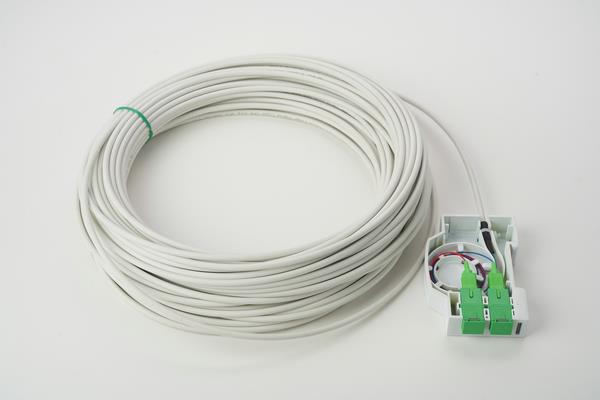

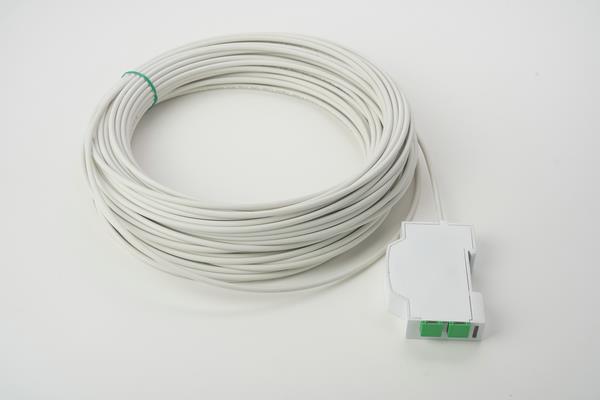

Access Terminal Box (ATB) is designed to connect the drop cable with PON ONU (Optical Network Unit) in FTTH application.
Access Terminal Box (ATB) is installed on the wall and provides protection for optical fiber splicing or termination.

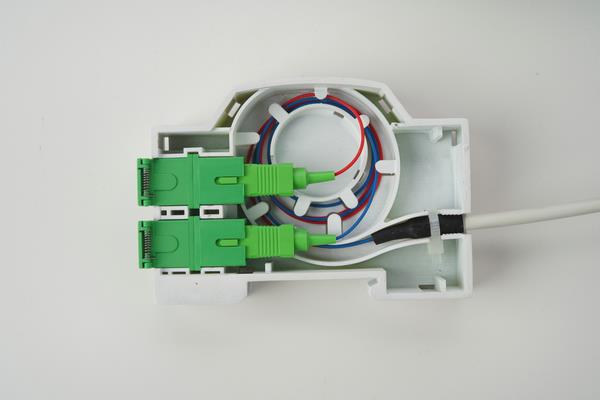

Access Terminal Box (ATB) supports fusion splicing, mechanical splicing, and field assembly fast connectors. Access Terminal Box (ATB) is compact and cost-effective
◆ Iscenario : Wall-mounted
◆ Manage a reasonable fiber radius condition
◆ Small,compact and smart design
◆ Storage/Operating Temperature:-20℃ to 55℃
◆Telecommunications subscriber loop
◆ Fiber to the home(FTTH)
◆ Fiber teminal port : 1 port,2 port ,4 port
◆ Connector : SC/UPC ,SC/APC
◆Simple operation and low construction cost
◆Flexible termination methods: splicing+ pigtail,
FTTH fast connector on site.
◆No need to open the cover when plug and unplug the fiber optic connectors
◆Downward optical port in Access Terminal Box (ATB) prevents eye injury by laser.
