Stainless Steel Tube Optical Cable

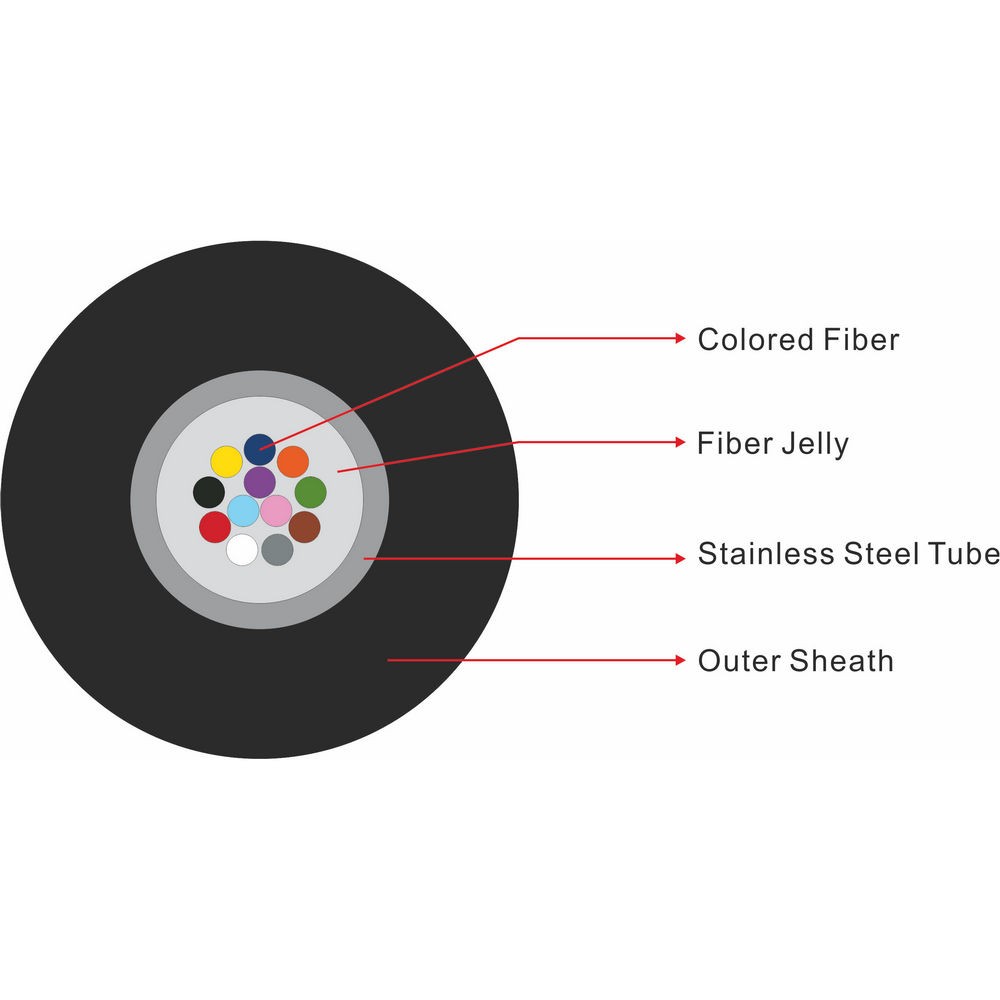

Mini round cable with stainless steel loose tube
- Description of the product
F-SST 4 steel wire reinforced cable contains mini F-SST as optical fiber unit and 6 steel wire or wire rope strengthening member. The maximum core is 24. It is jacketed with PE or PA. F-SST 4 steel wire reinforced cable has small size and low weight. With perfect mechanical performance and wide temperature and wide temperature range, it can withstand the strong pressure, harsh environment and is suitable for wide range and convenient for laying.
Single mode, multimode fiber optical cable, maximum of 24 cores
F-SST
PE, or PA jacketing, anti-ultraviolet radiation
6 steel wire strengthening
Small size and low weight
Good mechanical performance, withstanding the tensile force and force and super pressure
Waterproof, moisture-proof, anti-rodents,no rusty
Resistance to acid, alkali, salt corrsion
Outstanding high and low temperature performances
Overhead, pipe and under-ground laying
Temperature sensing cable, Fire monitoring and security monitoring
Subway, tunnel laying
Emergency repair
military
Operating temperature: -60~+80℃
Storage temperature: -60~+80℃
Static=10D
Dynamic=20D
GYTA, GYTS, GYXTW, GYXTC8S, GYTC8S
Fiber core number
size
Cable weight
Allowable tensile force (N)
Allowing crush force (N)
d
t
D
kg / km
Long-term / short-term
Long-term / short-term
1
0.90
1.00
3.00
9.35
160/320
2000/4000
2
1.20
1.00
4.00
11.91
200/400
2500/5000
4
1.35
1.20
6.00
13.23
230/460
2000/4000
6
1.50
1.20
8.40
16.92
250/500
2000/4000
8
1.75
1.20
10.40
19.41
300/600
2000/4000
12
2.00
1.50
15.00
26.42
350/700
1000/2000
twenty four
2.40
1.80
27.60
36.48
400/800
1000/2000
