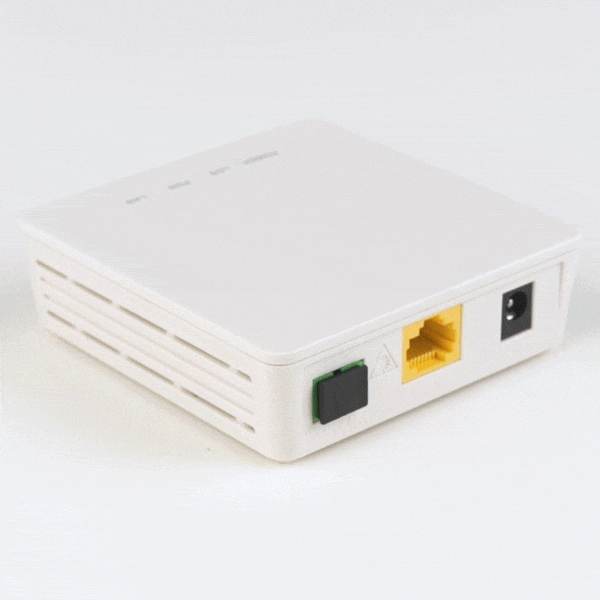

NCR-1GE GPON ONU
- Description of the product
The NCR-1GEONU is an FTTH GPON optical network unit with high performance and low power consumption. It provides subscribers with multicast services and enables their access to Internet to cater for the broadband access demands of families.
1.Uses GPON uplink that is compliant with ITU-T G. 984 series of standards;
2.Supports the configuration of Ethernet interface rates, working modes, MDI/ MDIX auto-negotiation mode, and Pause flow control;
3.Supports packet filtering and protection against illegal message attacks: suppresses unknown unicast, multicast and broadcast packets;
4.Provides performance statistics on all Ethernet lines;
5.Supports IGMP snooping protocol;
6.Supports the L2 wire speed forwarding;
7.Supports the WEB configuration function;
8.Supports the AES-128 algorithm for data encryption of downlink data;
9.Performs various QoS functions: supporting global configuration of queue priority and flexible mapping of 802. 1p value of packets;
10.Supports the PQ queue scheduling mode;
Hardware Specifications
Size（L*W*H）
85*89*27.5mm
Optical signal access
1*GPON
User interface
1GE
Indicator light
POWER/PON/LOS/LAN
Button
Reset Button
Weight
0.2kgs
Power adapter input
100V～240V AC，50Hz～60Hz
PowerSupply requirement
12V DC，0.5A
Power consumption
<6w
Working temperature
-10°C ~ +45°C
Environment humidity
5% ~ 95% (Non-condensing)
PON Interface
Module type
SC/APC or UPC
Working wavelength
up 1310nm，down 1490nm
TX Optical power value
0.5～4dBm
RX Optical power sensitivity
-27dBm
Transmission distance
0～20km
Transmission rate
Uplink 1.244Gbps；downlink 2.488Gbps
Ethernet interface
Interface type
RJ45
Interface parameters
1 x 10/100/1000Mbps auto adaptive Ethernet interfaces
